DVB-S/S2 Modulator with SDI-SD/HD-H264 Encoder

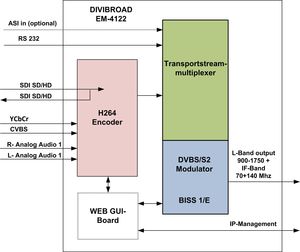

The Divibroad EM-4122 is a cost-effective DVB-S / S2 modulator with H264 encoder for SD and HD SDI signals. Applications are to:

  • Contribution, distribution and broadcast professional TV applications
  • SNG applications
  • Transmission of TV signals to / from TV studios

It supports the input 4: 2: 2 signals (4:2:0 Encoding). With a resolution of up to 1080p and 30 Mbit / sec. allows the encoder nothing to be desired in terms of the image quality of the material to be encoded. With the down-scaling function HD signals can be re-converted SD-in. About the optional ASI transport stream multiplexer integrated Input can integrate their signal into an existing transport stream and encrypts it if necessary. The device was developed for a 24/7 operation.



The price of 5.590, - Euro The following equipment is included: 1x H264 SD / HD Encoder + DVB-S / S2 Mod QPSK+ 8PSK + 16APSK + 32APSK / 32 Msymbol / BISS / 1x CVBS, YCbCr, SDI SD / HD. in / 70-2200 Mhz out WEB GUI / 2-year warranty support 16Kb and 64Kb FEC blocks / pilot mode / roll of 20% / 25% / 35% all prices plus tax + shipping.

Datasheed                                                       request offer...
